Iberlaser was born as a small workshop which has evolved into the leading Spanish company in innovation and production of laser cutting and engraving technology for over 15 years. We belong to a Laser Square Group group division and operate internationally. Iber laser is currently manufacture our machines in Europe and Latin America and we distribute by Asia.

INDI VI 350/700 + SART:

MACHINE IBERLASER INDI VI-350 MACHINE LAST TEXTURIZATION CENTER 350 W OF ALT PRECISION WITH WITH COMPUTER NUMERIC CONTROL (CNC) WITH CAPACITY OF TEXTURIZING, RECORDING, MARKING AND ROTATING 2D PARTS. AXLE COURSES 1900.MM ADVANCED AXIS 60 M / MIN, LOAD OF MESA175 KG. NCM: 84561190 MACHINE IBERLASER INDI VI-700 + SART MACHINE LAST TEXTURIZATION CENTER 700 W OF ALT PRECISION WITH COMPUTER NUMERIC CONTROL (CNC) WITH CAPACITY TO TEXTURIZE, RECORD, MARK AND ROTATE 2D PARTS. COURSES OF AXLES 1900.MM ADVANCED AXIS 60 M / MIN, TABLE LOAD 175 KG.

Dimension: 305 x 226 x 215 cm
Net weight: 1.220 kg
Gross weight: 1.440 kg
Electricity: 230v/3ph 50/60Hz
Intake: 10,2 kW/45 A
UPS: 12kVA

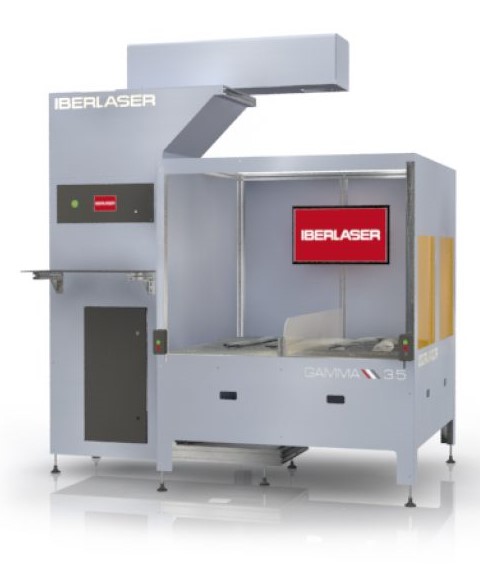

GAMMA:

Transformer Gamma model has a fixed table divided in two sections. While the laser engraving on one side, the operator positions the garment on the other. Each section measures 750 x 1300 mm. The separator can be extracted for an Area of 1300 x 1300 mm according to the production needs. Correctly about positioning area of the garment is the same as the area of laser action, incorporates photoelectric barriers to protect the operator in the event that any of its members into the section where the laser is working. By this way the laser will put the pause mode and the operator is totally protected. With this Model you can engraving a Jean open or two folded in each laser shot with a single operator. This Model has different Laser tube options: 200W, 300W & 600 W and is suitable for high production. The laser is always working and no loses time in production. The Laser working Area may change according to the customer needs in every moment from 600 to 1300mm. The operator positions the garment in the table with a camera system and the screen will facilitate its placement eliminating the possibility of defects in production.

Dimension: 2,27 x 1,44 x 2,57 M,
Gross weight: 400 kg
Net weight: 200 kg
Electricity: 220v/3ph+N 50/60Hz
Intake: 4,8kW/21A

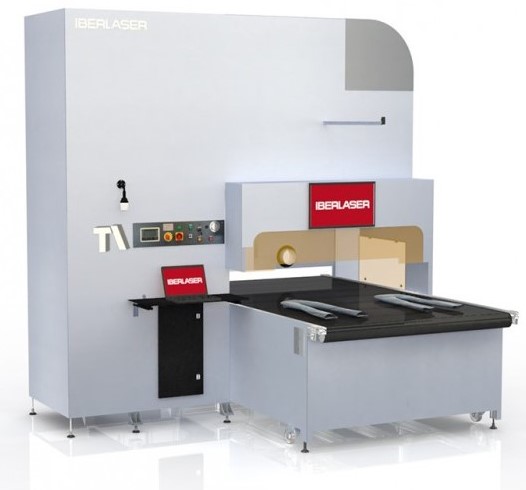

DELTA:

The Transformer Delta has an automatic programmable band of 1700mm wide, which allows to engrave more than one fabric items simountainously with only one worker. The laser tube which is included in this machine has a 600W power , and it’s suitable for high work charge productions. The action camp of the laser can be changed depending on the reqirements, from 600 to 1600 mm wide.

Dimensión: 300x334,1x319,6 cm
Peso Bruto: 1.525 kg
Peso Neto: 1.235 kg
Electricidad: 380v/3ph 50/60Hz
Consumo: 6kW/13A
